VF

VF - Mechanical Filler

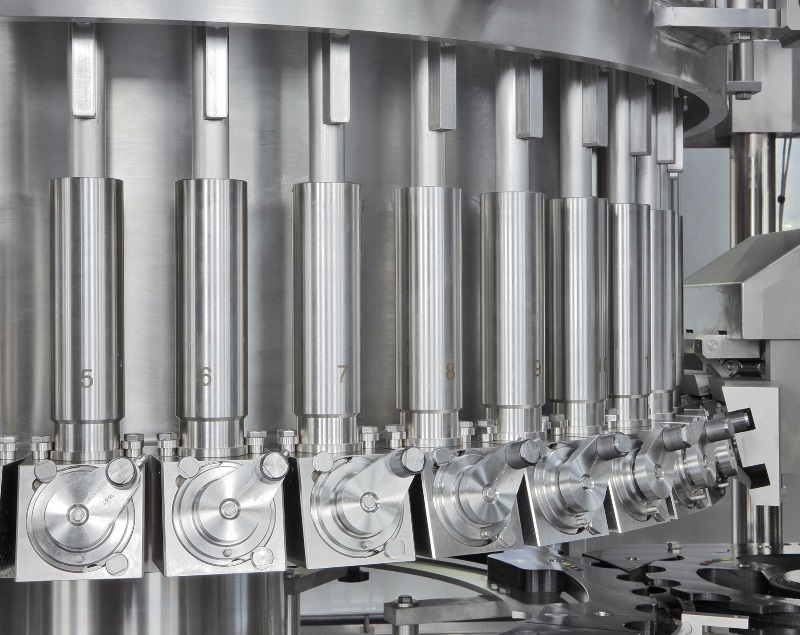

MECHANICAL ROTARY FILLER

Mechanically designed, the VF filler is a reliable machine that has proved itself over many years. It is flexible and guarantees easy maintenance and respect of the products to be filled.

The VF is available in Stand Alone or Monobloc configuration with a capper or a thermosealer. VF can be also associated with a neck trimmer or a rinser.




FILLING WITH EXPERIENCE

Speed: 3,600 to 40,000 containers per hour

Filling: 6 to 118 heads

Capping: 1 to 22 heads

Thermosealing: 8 to 36 heads

Volume: 25 to 1,825 ml

Containers: PET, HDPE, glass bottles or jars, metal cans

Products: Sauces, dressings, jam, honey, soups, baby food, condensed or evaporated milk



VF ROTARY FILLER FEATURES & BENEFITS

Unique advantages:

  • The valves and nozzles are specifically designed to products and containers shape to ensure perfect filling and cleanliness.
  • Choice of 2 types of valves: Cylindrical for semi-liquid products and Conical for fluid products.
  • Filling flexibility: VF technology is perfectly adapted to viscous, homogenous, or products with pieces up to 20 x 20 x 20 mm (or even larger, depending on the texture)
  • Respect for the product thanks to specifically-designed valves and nozzles
  • Reliability of production thanks to kinematic mechanics
  • Machine output levels of over 98%
